Single Line Diagram

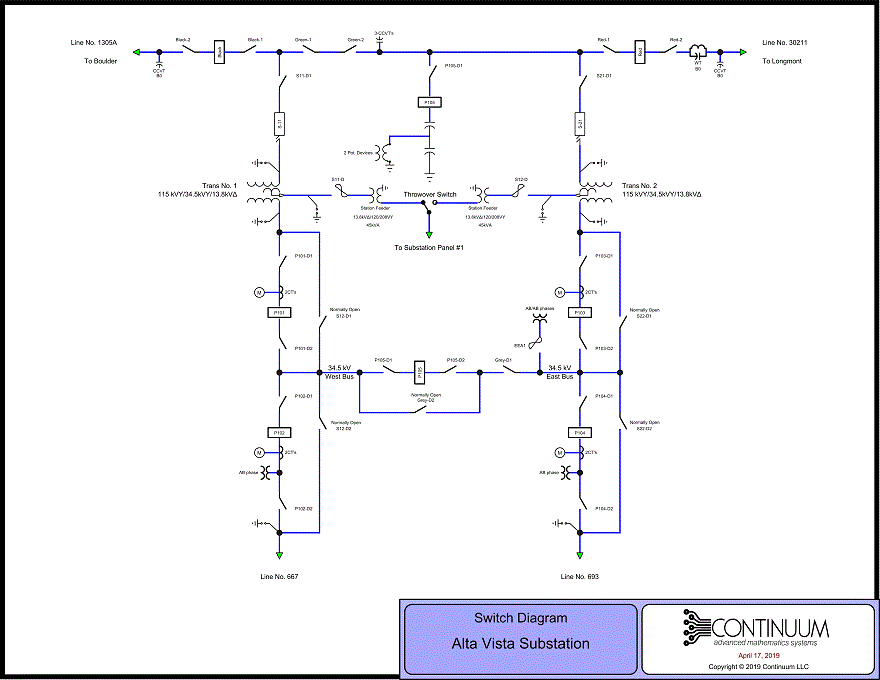

This is a diagram of a distribution substation. Geoschematics software assembles the drawing by tracing connections in the source data, forming lines of devices and conductors, and finally melding the lines into an efficient 2-dimensional design. Symbology is customized to satisfy the needs of the customer. In the single line diagram, multiple phase connections are collapsed into one line. Phase is indicated by a label on the conductor.
